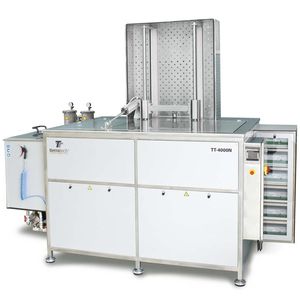

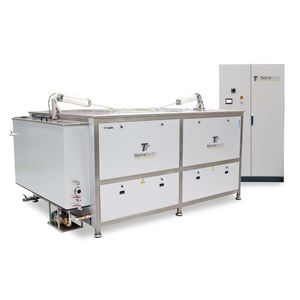

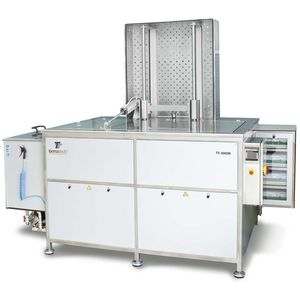

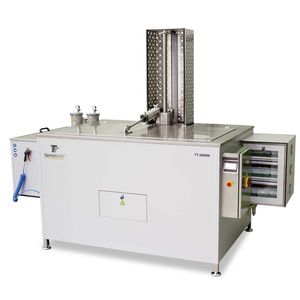

Ultrasonic cleaning machine TT-75

immersionautomaticindustrial

• Internal dimensions: 28” x 14” x 16” in • Useful dimensions: 26” x 12” x 11” in • External measurements: 42” x 23” x 35" in • Weight: 156 Lb ELECTRICAL CHARACTERISTICS • Power Supply: 400V+3F+TF / 14A • Heating element: 3x450W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 800Wp (1600Wp-p) • 1 ultrasonic generator with an output power of 800Wp (1600Wp-p) • Working frequency: 40 KHz sweep system ± 2% • 16 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. CONTROL PANEL • General switch • DEGAS system to degas water • Ultrasounds timer • Temperature selector • Power level selector: 50% - 100% FINISH AND ACCESORIES • Tank built in INOX AISI 316 Stainless steel, 0,08” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick • Integrated handles on the external panel • Stainless steel basket with anchorage system for loading, unloading and draining pieces • 1” inch draining ball valve • Height-adjustable silentblock legs • Insulated tank cover in stainless steel
