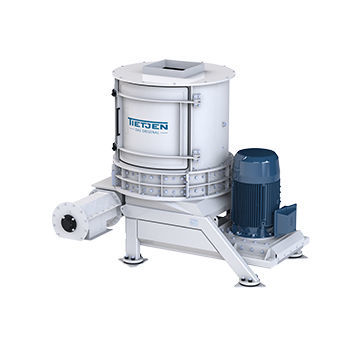

Biomass mill BMS serieshammerverticalwaste
Add to favorites
Compare this product
Characteristics
- Technology
- hammer
- Orientation
- vertical
- Product applications
- corn, for fruit, waste, straw, for biomass
- Power supply
- 380V three-phase
- Sector
- for recycling
- Rotational speed
Max.: 900 rpm
(5,655 rad.min-1)Min.: 750 rpm
(4,712 rad.min-1)- Output
15 t/h
(9 lb/s)- Machine length
Max.: 2,700 mm
(106 in)Min.: 2,535 mm
(100 in)- Machine width
Max.: 1,730 mm
(68 in)Min.: 1,546 mm
(61 in)- Machine height
Max.: 2,660 mm
(105 in)Min.: 2,360 mm
(93 in)- Machine weight
Max.: 4,900 kg
(10,803 lb)Min.: 3,600 kg
(7,937 lb)
Description
Tietjen’s biomass shredder BMS is a vertical grinder that efficiently and homogeneously processes biomass for anaerobic digestion. By de-fibering, crushing and grinding with Tietjen’s BMS, a higher gas yield is achieved, and difficult substrates can be made usable in the digester.
These raw materials are typically grinded and crushed in the Biomass Shredder BMS:
Solid manure from chickens, cattle, horses, turkeys or pigs.
Corn and grass silage
Grass clippings and straw
Sugar beets
Crops and agricultural waste
other biomass
VIDEO
Catalogs
No catalogs are available for this product.
See all of TIETJEN‘s catalogs
