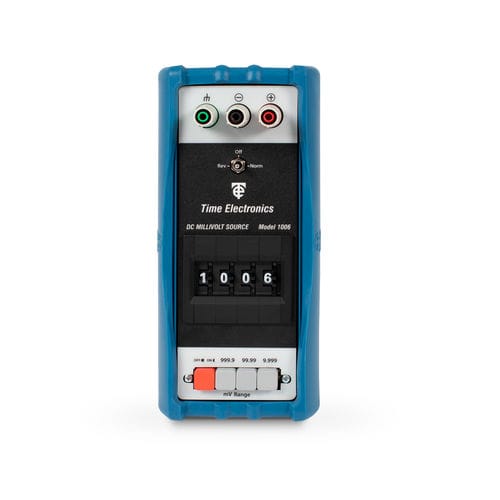

Voltage calibrator 1006

currentportableprecision

The 1006 is an accurate millivolt source suitable for voltage injection applications. Three output ranges are provided to give adjustable output values from 1 μV to 1 V with a basic 0.02 % accuracy. For signal injection, the operator needs to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The instrument uses a precision reference diode and low temperature coefficient resistors to give a highly stable output. Power is provided by 6 AA batteries. Battery life is several months, depending on usage. The battery condition is monitored by an indicator situated on the top of the unit. The 1006 has up to 20 mA drive current and is short circuit and overload protected. An off/normal/reverse output polarity switch is provided. Features • 3 ranges up to 1 V • Accuracy 0.02 % • 20 mA output current • Short circuit and overload protected • Safety terminals • Durable protective rubber cover • Portable with 100 hours typical battery life
