Current calibrator 1030

voltagefor temperature sensorsportable

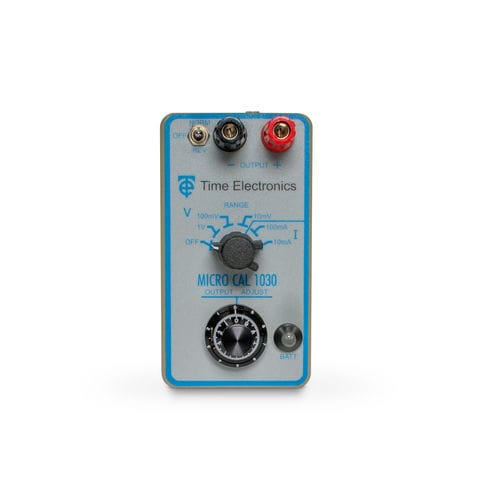

The 1030 MicroCal is a portable voltage and current calibrator for general purpose signal injection. It is suitable for voltage and current loop signal simulation as well as thermocouple simulation. With fast analogue setting, it is a popular engineers field calibrator used in various applications. Three voltage ranges give an adjustable output from 10 μV to 1 V and two current ranges for 10 μA to 100 mA. An additional 0 to 8 V output can be obtained by using the 1 KΩ resistor that is supplied with the unit. It can be connected across the output terminals and the 10 mA current range selected. It allows the output to be set between 0 and +/- 8 V with a 10 mV resolution and an accuracy of 0.3 % of full scale. The 1030 is simple to operate and does not require any standardisation prior to use. The operator needs only to switch on, check the battery condition, and set the required range and output value. The unit is a pocket-sized, practical test tool for technicians requiring a precision compact solution for low range DC V/I sourcing. Features • 10 mV, 100 mV, 1 V ranges • 10 mA, 100 mA ranges • Accuracy 0.1 % • Linearity 0.15 % • Up to 8 V output (using 1 kΩ resistor) • Precision 10-turn dial • 60 hours typical battery life • Battery level indicator • Portable, supplied with carry case
