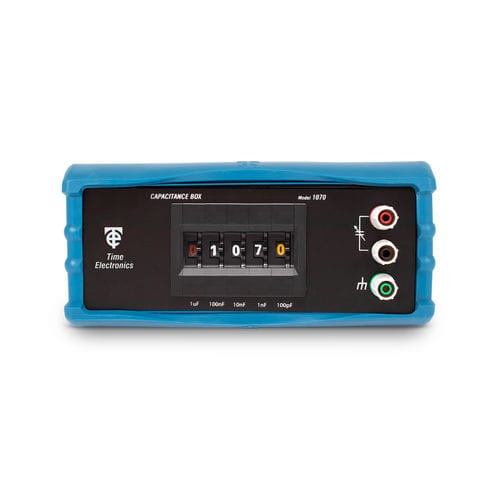

Capacitance decade box 1070

precision

High accuracy and wide range makes the 1070 capacitance decade box suitable for applications in industry and education. It is both compact and robust, housed in a metal case that provides complete screening, with a protective rubber cover to guard the 1070 against everyday wear and tear. The 5-digit thumbwheel switch enables simple and precise setting of the capacitance value. Clear Visual Indication: To make selecting and reading the setting easy the 1070 incorporates colour coded digits: μF - red, nF - white, pF - yellow. Also available is the 1071 capacitance decade box that provides 10 pF to 100 μF. This unit maintains the same features and ease of use with an additional two decades to cover the wider range. Features • 100 pF to 10 μF • 1 % Accuracy • In-line readout • Colour coded digits • Safety terminals • Bi-polar working • Supplied with protective cover
