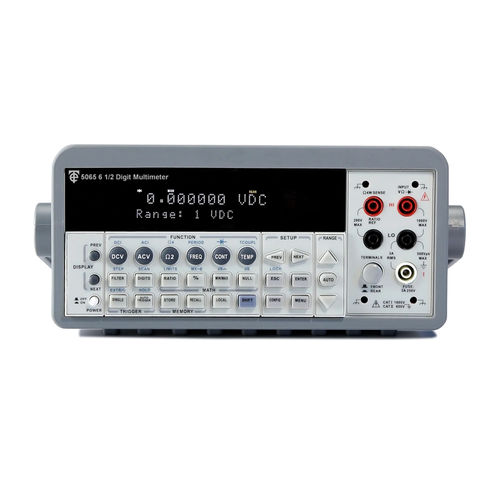

Digital multimeter 5065

benchtop1000 V3 A

The 5065 is a high performance, versatile 6½ digit bench multimeter with 19 measurement functions. Low cost, simple operation, stability, and high accuracy make the 5065 an ideal DMM for a variety of applications. In addition high speed means both the sampling rate and the data transfer rate can achieve 2000 readings per second. The 5065 measures AC/DC voltage, AC/DC current, 2 and 4 wire resistance, frequency, period, diode, continuity, thermocouples and RTD. In addition to standard functions many other capabilities such as Min/Max, Ratio/% and Null are included. Memory functions with up to 2000 readings can be stored and recalled. Limit testing with an external output can be configured to signal pass or fail. The comprehensive range of features makes the 5065 suitable for test engineers, service and calibration technicians. The durable construction with a protective rubber guard and carry handle allows convenient benchtop use and transportability. Options include a 10 channel scanner card that allows multiple inputs to be measured, GPIB interface, RTD probe adaptor, test lead sets, and a soft carry case. Features • DC V to 1000 V, AC V to 750 V • AC/DC current to 3 A • Two and four wire resistance • Frequency from 3 Hz to 300 kHz • Period and diode measurement • Temperature measurements • USB interface, optional GPIB • EasyCal software compatible
