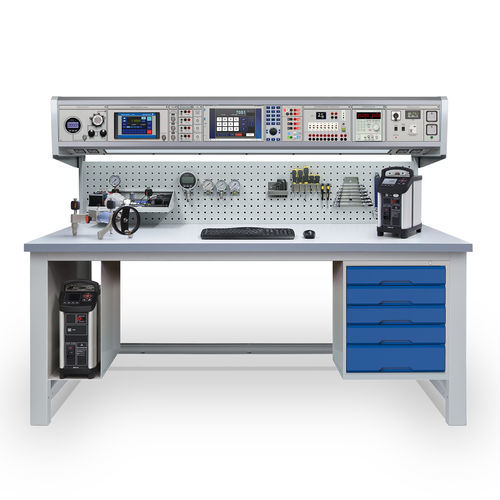

Pressure calibration and test bench CBP-WW1

electrical and mechanicaltemperaturemulti-parameter

The CBP-WW1 is a CalBench package designed to provide users with a turnkey solution to calibrate instruments and devices used across industries. It offers a selection of features and functions to enable automated calibration of electrical, pressure and temperature instrumentation. The system features the 7051+ multifunction calibrator module with 12.1" control centre display. This module combines a high performance electrical calibrator (source) with a 6.5 digit multimeter (measure). The control centre has manual control applications and EasyCal software for automated calibration & test management. EasyCal communicates with pressure modules and dry block calibrators. Also supplied are accessories and peripherals for EasyCal, including a printer kits for certificates and labels. For pneumatic pressure the CalBench features a controller module for vacuum to 20 bar (300 psi), and a 200 bar (3000 psi) regulated module with digital gauge. Additional pressure calibration can be performed using high accuracy measurement modules for pneumatic and hydraulic applications. These are utilised with the supplied benchtop pumps that feature dual outputs to connect both the module and UUT. Manifolds, test stand, adaptors and fittings are also provided. For temperature calibration, two dry block calibrators are included for coverage from ambient to 1200°C. Features • Multi-parameter CalBench system • Electrical, temperature, pressure • Multifunction calibrator/DMM/PC module • Source/measure V, I , Ω, frequency & more • Simulate & measure RTDs, thermocouples • Pneumatic & hydraulic pressure modules • Oscilloscope module, DC supply modules
