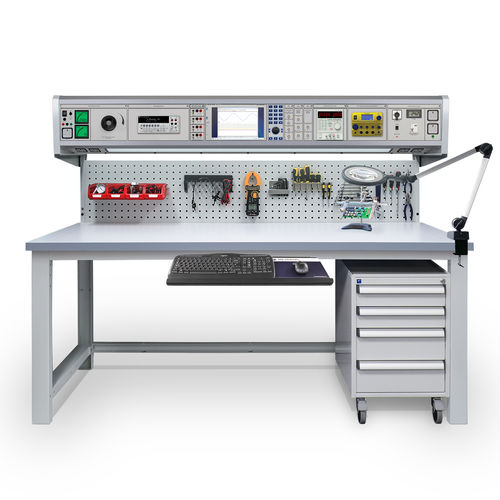

Electrical and mechanical calibration and test bench CBP-RM2

industrial

The CBP-RM2 is a functionally advanced CalBench package featuring a touch screen PC control centre and a selection of software controlled test modules. Users can access the wide range of functions and features from one ergonomic and organised workspace. The control centre situates centrally in the console, with the connections for the software operated modules next to it. These include a 20 MHz function generator, 6 GHz frequency counter, and 100 MHz oscilloscope. These modules are utilised via their dedicated software applications running on the control centre. Further modules include a variable AC power supply, fixed and adjustable DC power supplies, and digital multimeter. The module selection benefits engineers and technicians by combining familiar test equipment with intuitive and versatile interfaces. It is a solution for fast and efficient diagnostics and service work, but also enables users to implement and maintain quality processes from one station. For on-bench repairs a soldering/re-work module allows users to work on devices, PCBs and components. Accompanying products include a fume extractor, magnifying lamp, circuit board holder, turntable and electronics service tool kit. Features • Software controlled & manual operation • 12.1” touch screen control centre PC module • Control centre scope & function generator • Frequency counter with power meter  • Digital multimeter module • Fixed & variable AC and DC power supplies • Solder & re-work module with accessories • Range of extras included for service work • Suitable for E&I workshops in process and power plants
