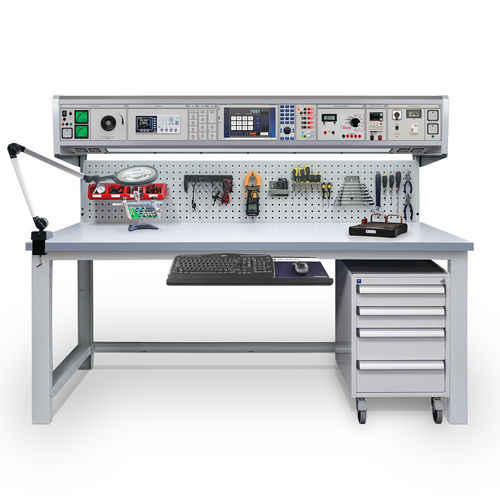

Electrical and mechanical calibration and test bench CBP-ELEC2

industrial

A CalBench package that provides users with a combination of modules and accompanying products for calibrating electrical and electronic test equipment and devices. It allows users to test and verify a wide range of instruments, with a high level of automation to ensure rapid turnarounds. The system features the 7051+ multifunction calibrator module with 12.1" control centre display. This module combines a high performance electrical calibrator (source) with a 6.5 digit multimeter (measure). It is supplied with a range of accessories for applications and EasyCal software for automated calibration, certificate creation and more. Users can access the wide range of functions and features from one ergonomic and organised workspace. The control centre situates centrally in the console with communication to various modules. These include a 100 MHz oscilloscope, 20 MHz function generator, and 6 GHz frequency counter. These modules are operated via software applications on the control centre. These are operated via software applications on the control centre. Further modules include variable AC and DC power supplies, an LCR meter and insulation tester calibrator. Features • Calibrate electrical & electronic test tools • Source/measure V, I , Ω, Hz, temperature • Electrical multifunction calibrator module • 12.1” touch screen control centre • Oscilloscope, AFG & frequency counter • Variable AC and DC power supply modules • Precision LCR meter module • Insulation tester calibrator module • Environmental monitor/datalogger included • Solder and re-work station with accessories • Service tool case and ESD workstation kit
