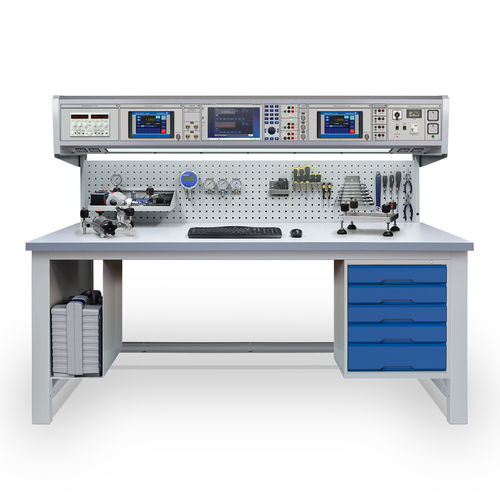

Pressure calibration and test bench CBP-PRES1

industrial

The CBP-PRES1 CalBench is a package that provides users with the capabilities to perform rapid calibration of pressure instrumentation. It is an ideal solution for instrument workshops that require a high performance workstation as the platform for calibration of plant devices and instruments. The CalBench features 8030B auto-pneumatic controller modules for calibration work to 200 bar (3000 psi). The low range controller covers pressure to 20 bar (300 psi) with a vacuum to 2 bar (30 psi) sub-range. The line pressure and vacuum to this module is via electric pumps, meaning no requirement for external supply. The high pressure controller has 2 ranges to 200 bar (3000 psi). Line pressure to this module is typically via a pressure cylinder, we supply a regulator kit for fitting and use. Both controllers have barometric reference sensors that enables switching from gauge to absolute pressure. Additional pressure modules include differential and gauge measurement modules for pneumatic and hydraulic testing applications. They can be used with the supplied benchtop pumps. Manifolds, test stand, adaptors and fittings are also provided. The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1” touch screen display. Pressure control and readback applications are included. EasyCal software communicates with pressure modules, and can be used for automated calibration and test management.
