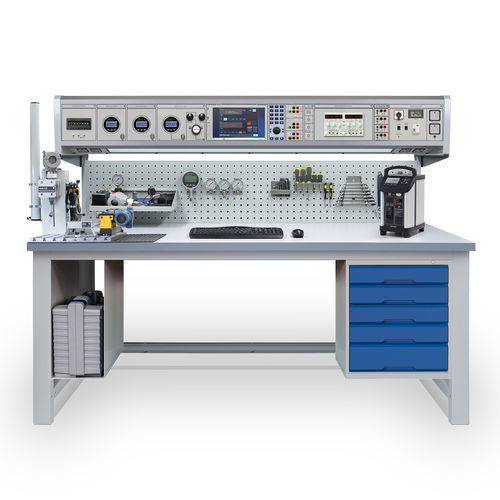

Pressure calibration bench CBP-TRN1

temperaturefor temperature sensorsfor pressure gauges

The CBP-TRN1 CalBench can be used to demonstrate and practice pressure, process, and temperature instrumentation calibration. It is suitable as a teacher workstation that is easy to operate manually, but can also perform software driven calibration. Educate trainees on applications relating to commissioning, calibration and maintenance of the typical devices used for measurement in industrial systems. The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1" touch screen display. Both manual control and EasyCal software driven calibration can be performed. EasyCal communicates with pressure modules and dry block calibrator. For pressure, pneumatic and hydraulic calibration can be performed. A regulated pneumatic module with digital gauge is used for vacuum to 7 bar (100 psi). Then gauge modules for 20 bar (300 psi) and 350 bar (5000 psi) are used with supplied pumps. The package has various extras to aid training applications and create an ergonomic workspace. These include on-bench storage with drawers, holders, perfo panel hooks, document holder, and shelves. Calibration accessories include an adaptors/fittings kit, and an instrumentation test stand with manifold, vice and transmitter bracket. Features • Instrumentation test & trainer bench • Process calibrator/multimeter/PC module • Source/measure V, I , Ω, Hz, temperature • Regulated calibrator module vacuum to 7 bar • Digital gauge modules for 20 & 350 bar • Fixed & variable DC power supply modules
