Pressure calibration bench CBP-TRN2

temperaturefor thermocouplesfor RTD sensors

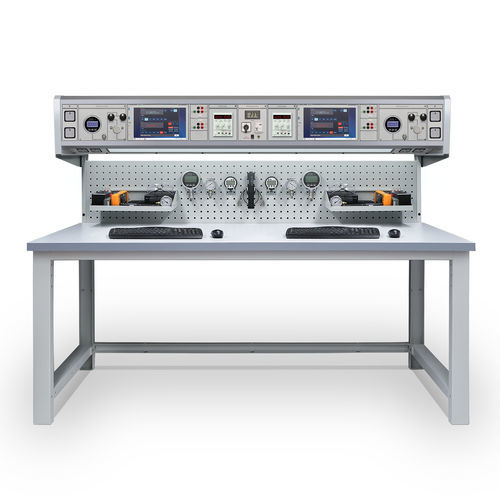

The CBP-TRN2 CalBench is a dual user workstation for instrumentation test and training work. Students can work side by side to practice various applications relating to commissioning, calibration and maintenance of the typical devices used for measurement in process and oil & gas industries. The CalBench console is configured with 2 sets of identical modules fitted to each side. This makes a combined solution for two students to work on tasks at the same time. 8060 modules provide source, simulation and measurement of process signals, HART communication and 24 V loop power. Each features a PC control centre with 12.1" touch screen display, running the calibrator control application. EasyCal software is available as an option, to enable automated calibration and test management. For pressure, regulated pneumatic modules with digital gauges are used for 0 to 7 bar (100 psi) controlled output. Additional modules include two variable DC power supplies and two dual AC power socket modules situated and each end of the console. The package has various extras to aid training applications and create an ergonomic workspace. These include perfo panel hooks, document holder, and shelves. Calibration accessories include an adaptors/fittings kit, and an instrumentation test stand with manifold, vice and transmitter bracket. Features • Dual user test & trainer CalBench package • For 2 students, side by side operation • 2 x process calibrator/control centres • 2 x variable DC power supply modules • 2 x regulated pressure calibrator modules • Accessories for UUT connections & setup • Perfo options for storage, document holders
