Pressure calibration bench CBP-TRN3

temperaturefor temperature sensorsfor pressure gauges

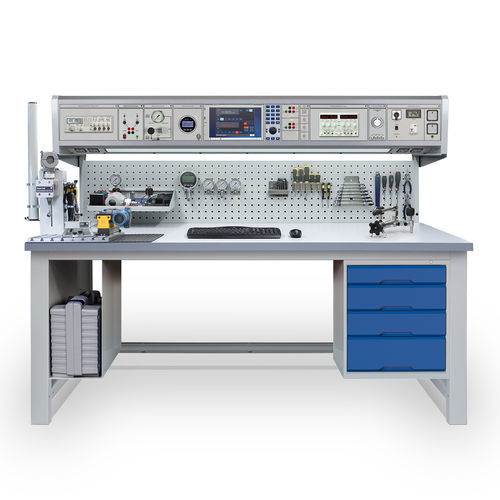

The CBP-TRN3 CalBench is a multi-parameter workstation for pressure, process, and temperature instrumentation calibration training. It features a selection of easy to use modules and extras for practicing instrumentation setup, connections and testing. Educate trainees on applications relating to commissioning, calibration and maintenance of the typical devices used for measurement in industrial systems. The 8060 module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features a PC control centre with 12.1" touch screen display, running the calibrator control application. EasyCal software is available as an option, to enable automated calibration and test management. For pressure, a simple operation regulated pneumatic module with analogue gauge is used for 0 to 5 bar (70 psi) controlled output. Then a precision digital gauge module is used with the supplied pneumatic pump for vacuum to 20 bar (300 psi) coverage. Additional modules include a control centre operated oscilloscope, function generator with frequency counter, Pt100 simulator and DC power supplies. The package has various extras to aid training applications and create an ergonomic workspace. These include on-bench storage with drawers, holders, perfo panel hooks, document holder, and shelves. Calibration accessories include an adaptors/fittings kit, and an instrumentation test stand with manifold, vice and transmitter bracket. Features • Basic test & trainer CalBench package • Process calibrator/control centre • Source/measure V, I , Ω, Hz, temperature • Regulated analogue gauge module 0 to 5 bar
