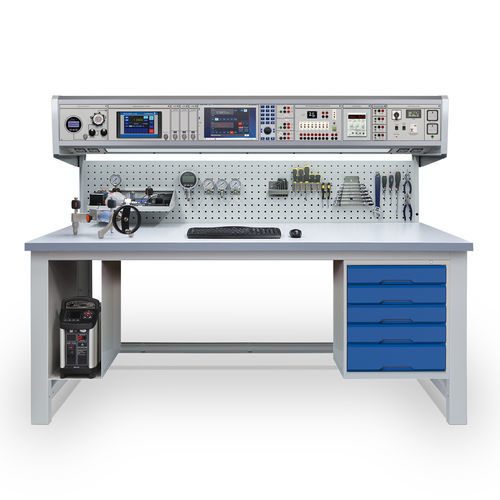

Pressure calibration bench CBP-PROC1B

temperaturefor temperature sensorsfor pressure gauges

The CBP-PROC1B CalBench is a comprehensive pressure and temperature calibration bench based on the popular CBP-PROC1 package. It provides a wealth of functions with wide range coverage making it suitable for instrument workshops that require a single workstation for calibration of plant devices and instruments. The heart of the system is the 8060+ module that enables automated calibration and communication. The calibrator section features source, simulation and measure capabilities for process signals, HART communication and 24 V loop power. Also included is an integral 6.5 digit multimeter for additional measurement applications. The PC control centre section has 12.1" touch screen display and runs the manual control applications for the process calibrator and multimeter. EasyCal software comes pre-loaded on the system and enables automated calibration and test management. It communicates with pressure modules and the supplied dry block calibrator. Peripherals supplied include a certificate printer, label printer and bar code reader. The package provides the foundation for professional instrumentation calibration within a QA program that requires optimal compliance and traceability. It can also be utilised for training of instrument technicians and engineers. The package can be customised to match site requirements, change pressure ranges, add/remove items as required. Features • Advanced process/pressure test bench • Process calibrator/multimeter/PC module • Source & measure V, I , Ω, frequency • Simulate & measure temperature • Calibrate pneumatic & hydraulic pressure • Dry block calibrator included
