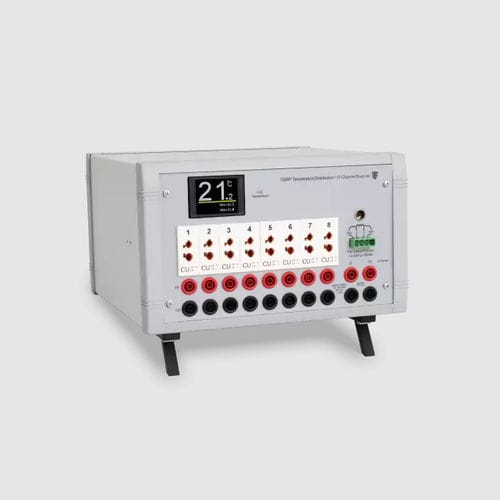

Scanner calibrator 7085P

temperaturemulti-channel

The 7085P is the benchtop version of the 7085A module. It is a temperature distribution unit that allows users to quickly create multi-channel measurement applications. It can switch 8 thermocouple inputs and 1 RTD reference to a common output. The instrument interfaces with EasyCal software and the 10 channel scanner in the multimeter section of the 7051+, 8060+ or 5065B modules. It supports multifunction measurements including resistance, AC/DC voltage and current, thermocouple and RTD. For temperature measurements the cold junction compensation is equipped to improve accuracy, and is shown via an LCD display on the front panel. The CJC is also read back and factored by EasyCal software via internal communication during applications. The 7085P provides a convenient method of temperature UUT connection and calibration. To automate the process, EasyCal software controls the dry block calibrator (see TE range) and captures readback via the CalBench control centre (with integral multimeter) for automated testing. This method means that a typically time consuming temperature calibration application can be performed without relying on the user to manually step through the temperature ranges. The multiple input connections aid the workload further by allowing up to 8 thermocouples to be tested at one time. The 7085P is an excellent solution that saves both time and resources by automation and batch testing capabilities Features • Switches 8 thermocouple inputs & 1 RTD reference to a common output • Records min/max ambient temperatures • Cold junction temperature display • Communicates with 7051+, 8060+, 5065B • Clear visual display of temperature (LCD)
