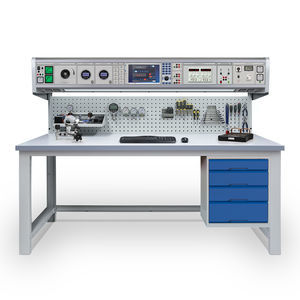

Multifunction calibration bench CBP-WW4

pressuretemperaturepower meter

The CBP-WW4 CalBench is a package for testing and calibrating electrical, pressure, and temperature instrumentation. The selection of modules and accompanying products provide users with a flexible and high performance workstation. It can be operated manually or utilised for software driven calibration. The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1” touch screen display. EasyCal software is pre-loaded and communicates with pressure modules and the dry block calibrator, enabling automated calibration and test management. The 5025E benchtop multifunction calibrator connects to the control centre, and provides a solution for calibrating engineer test tools like multimeters and clamp meters. For pressure calibration, high accuracy digital gauge modules feature. For pneumatic workload a regulated module is used for vacuum to 7 bar. An electrical vacuum pump is supplied, and line pressure is typically from plant/shop air. For higher pressures gauge only modules are used with supplied pneumatic and hydraulic pumps. Further modules include fixed and variable DC and AC power supplies, and control centre operated scope and function generator modules. Storage is provided by an under bench drawer unit, perfo panel hooks, shelf, and parts bins. Calibration accessories include a pressure manifold, adaptors set, and dry block calibrator.
