Multifunction calibration bench

pressuretemperaturefor electrical measuring instruments

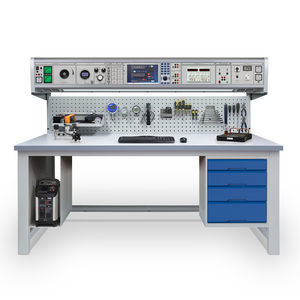

The CBP-WW4B CalBench is a package for testing and calibrating electrical, pressure, and temperature instrumentation. The selection of modules and accompanying products provide users with a flexible and high performance workstation. It can be operated manually or utilised for software driven calibration. The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1” touch screen display. EasyCal software is pre-loaded and communicates with pressure modules and the benchtop multifunction calibrator (5025E-S2) for automated calibration and test management. The 5025E-S2 connects to the control centre, and provides a solution for calibrating engineer test tools like multimeters and clamp meters. For pressure calibration, two high accuracy digital gauge modules feature for vacuum to 7 bar, and 20 bar. These modules are used with the supplied pneumatic benchtop pump. Further modules include fixed and variable DC and AC power supplies, and control centre operated scope and function generator modules. Storage is provided by an under bench drawer unit, perfo panel hooks, shelf and parts bins. Calibration accessories include a pressure adaptors kit, clamp meter and tacho meter calibration adaptors.
