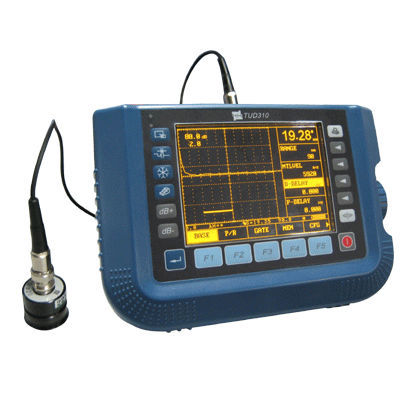

Ultrasonic flaw detector TUD310

portabledigital

Features: Four Rectify Ways: positive half-wave, negative half-wave, full wave and radio frequency. Two scanning mode: A and B; Gate alarming function. 32 detecting channels are available with a separate detecting parameter and DAC curve in every channel. Automatic generation of DAC curve, and 30 points can be recorded at most, adjustable offset curves and gain correction functions are available. Three detecting modes: single-probe , dual-probe and transmission; Equipped with high-speed USB port and flash memory device can be used directly on the instrument Data and documents are managed under FAT file system, making the management of inspection data more convenient, faster and more reliant Super large memory up to 32M, 1000 echo data can be stored in 32 detecting channels. Brand new digital signal circuit is designed for TUD310, Digital signal processor (DSP) is used for signals analyzing, making circuit noise reduced properly and waveform more stable. EPSON ink-jet printers can be connected with TUD310 by USB cable Real-time waveform display and review
