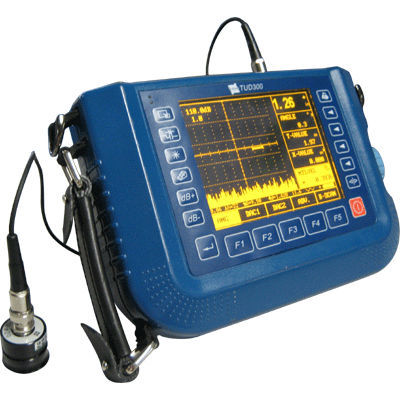

Ultrasonic flaw detector TUD300

portablemultichannel

Features: Real-time multi function system, stable, reliable and efficient operation Measuring of pitch interval and analyze of echo times; Auto-calibration of probe and auto-gain. Two measuring unit: mm/inch; All built-in software can be up-graded on PC; Lock/unlock the system parameters; Equipped with gate setting and alarming function. Two measurement displaying mode: A scan and B scan; Freeze/defreeze waveform and detection parameters; Communicating with PC by RS232 port for transferring the measuring data and system parameters; 10 detecting channels are available with separated detecting parameters and DAC curve in every channel. Automatic generation of DAC curve, and 30 points can be recorded at most, adjustable offset curves and gain correction functions are available. Provided with linear reject function, the highest range is 80% of the screen height; Memory up to 300 A scanned images, parameters and DAC, and 30000 thickness values. Four Rectify Ways: positive half-wave, negative half-wave, full wave and radio frequency. Three detecting modes: single-probe , dual-probe ones and transmission;
