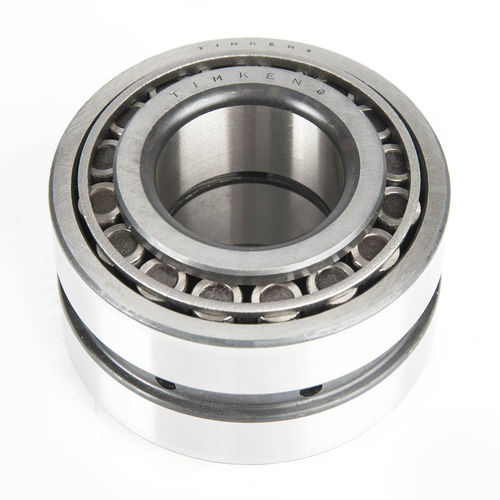

Tapered roller bearing TDO double-rowsteelfor industry
Add to favorites
Compare this product
Characteristics
- Rolling element
- tapered roller
- Configuration
- double-row
- Material
- steel
- Applications
- for industry, for gear reducers, for rolls
- Other characteristics
- for heavy loads
- Inside diameter
Max.: 1,200.15 mm
(47.25 in)Min.: 25.4 mm
(1 in)- Outside diameter
Max.: 1,460 mm
(57.48 in)Min.: 30.48 mm
(1.2 in)
Description
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Design Attributes:
Double cup and two single cones, with or without a spacer.
When spacers are used, bearing is furnished as a preset, matched assembly.
Cup features groove and lubrication holes in the OD.
Spacers available with or without lubricant grooves and holes.
Applications:
Heavy-duty gear drives
Various industrial configurations
