Tapered roller bearing

radialsteelwheel

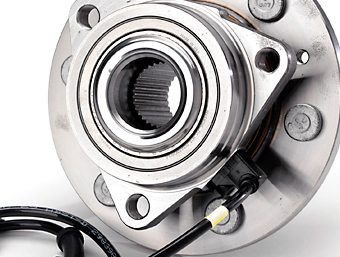

The Generation 3 hub and bearing assembly is an integrated bearing assembly that offers design flexibility and bolt-on simplicity and features active sensing technology. Generation 3 improves stiffness and brake performance, reduces weight and envelope size, lowers assembly costs and reduces warranty claims. Design Attributes: Integrated raceway and hub increases stiffness as much as 30 percent over conventional systems. Also eliminates the discrete race variables between the bearing and hub, providing a closer preload setting range. Narrow overall package width and reduced radial section thickness lowers unsprung weight, improving vehicle maneuverability and fuel efficiency. Features a pre-sealed, pre-greased and pre-set bearing package design with integrated sensing technology for anti-lock braking systems, total traction control and vehicle dynamics systems. Hub-forming technology reduces strain on components and the costs associated with purchased parts and labor. Also allows for commonization between driven and non-driven designs. Fully serviceable wheel speed sensor is internally mounted and protected from road hazards, debris and potential damage. Applications: Light trucks and sport utility vehicles (original equipment and aftermarket)
