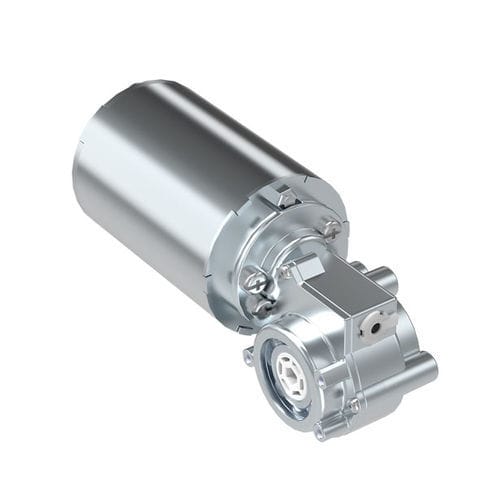

DC gear-motor TGM1 series
wormright anglehollow-shaft

DC gear-motor
DC gear-motor
Add to favorites
Compare this product

Go to the TiMOTION Europe website for more information

Characteristics

Motor type
DC
Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Voltage
24 V, 12 V
Torque
5 - 10 Nm
Performance
low-noise
Product applications
for lifting applications
Operating temperature

Max.: 45 °C
(113 °F)

Min.: 5 °C
(41 °F)

Description

TiMOTION’s TGM1 series gear motor was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles. • Max. speed at max. load: 72RPM (±5%) • Max. speed at no load: 262.5RPM (±5%) • Certificate: UL962 • Output signals: Hall sensors • Hexagon hole for the shaft by 6 or 9.1mm diameter

Catalogs

TGM1
TGM1
7 Pages
