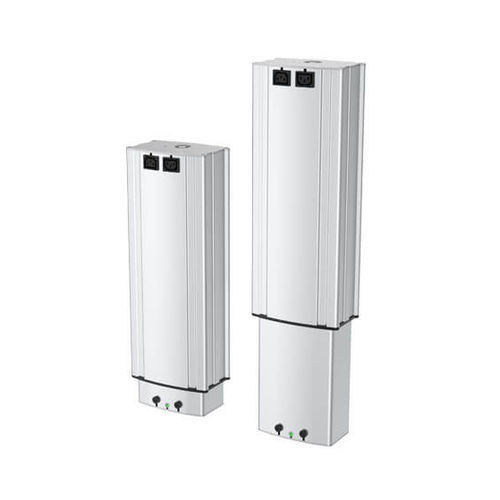

Lifting column for medical applications TL52 seriestelescopic2-stagewith AC input
Add to favorites
Compare this product
Characteristics
- Applications
- for medical applications
- Structure
- telescopic, 2-stage
- Electrical characteristics
- with AC input, AC
- Force
Min.: 0 N
Max.: 3,300 N
- Stroke
Min.: 200 mm
(7.87 in)Max.: 800 mm
(31.5 in)
Description
TiMOTION’s TL52 series electric lifting column is designed for medical applications, particularly ophthalmic testing equipment or eye examination instruments. It is equipped with three optimally positioned AC plugs that directly connect related devices. The TL52 has a two stage telescopic outer tube designed for a wide-top, narrow-bottom rectangular appearance.
• Self-locking force: 3,300N
• Max. dynamic bending moment: 250Nm
• Max. static bending moment: 500Nm
• Max. speed at max. load: 6.5mm/s
• Max. speed at no load: 38mm/s
• Retracted length: ≥Stroke+256mm
• Dimension of outer tube: 184.4*120mm rectangular
• Options: AC power input/output
• Voltage: 100~240V AC (SMPS)
• Color: Black, silver
• Operational temperature range: +5°C~+45°C
