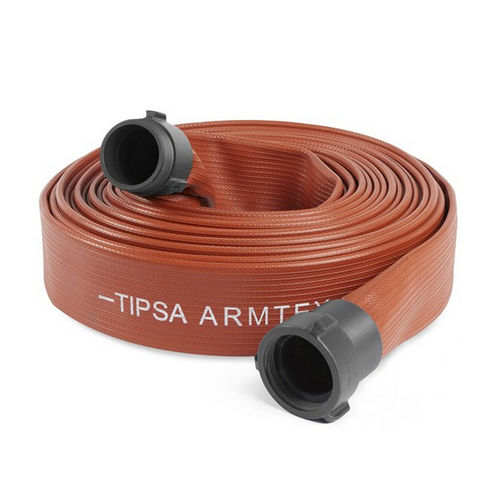

Water hose ARMTEX ONE

nitrile rubberPVCsynthetic yarn

BS 6391:2009 Type 3 certified by Global Mark (1 1⁄2", 1 ¾", 2", 2 1⁄2"-64mm and 2 ¾") UNE 23091-2A Certified (1 ¾" and 2 ¾") Aplications: Designed and recommended for firefighting, especially in municipal fire departments, petrochemical and nuclear plants, navies and other industrial services. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by tough, highly resistant synthetic nitrile rubber & PVC blend, extruded through the weave, forming a single homogenous construction without the use of glues or adhesives. Lining Properties: a. Ultimate Tensile Strength of the lining: Minimum guaranteed value of 1750 psi (12,000 kPa ). b. Ultimate Elongation: 450% minimum. In very extreme conditions where abrasion is the most serious concern ARMTEX ONE will extend hose life. Excellent abrasion resistance when tested according to FM2111 and UL19 abrasion tests. No visible signs of cracking appear on the lining or cover when tested in accordance with ASTM D518 Procedure B, 100pphm / 104ºF (40ºC). Exposure to seawater and contamination by most chemical substances, hydrocarbons, oils and greases has no effect on the short or long term performance of the hose. A chemical resistance chart is available and TIPSA will supply specific chemical resistance data when requested by the purchaser for unique applications. The hose is capable of withstanding a surface temperature of 1112º F (600ºC) for a minimum of two minutes without rupture or damage to the synthetic reinforcement when subjected to static pressure of 100 psi (700 kPa). Couplings: As requested by purchaser; NH-Rocker Lug, Storz, Guillemin, Barcelona, etc.
