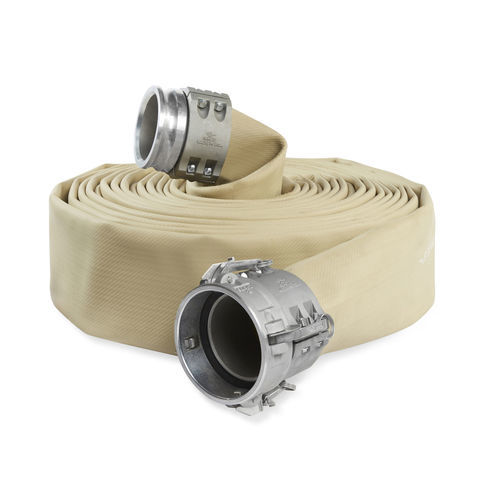

Fuel hose OROFLEX OIL

thermoplasticpolyurethanepolyester

Designed and recommended for fuel and oil discharge operations in refineries, mari- time industry, chemical plants, and military installations. Ideal for brackish and seawater transfer, ship-to-shore unloading, ship-to- ship refuelling, bulk fuel discharge/loading, tank-to-tank transfer, aircraft refuelling, and home fuel delivery. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by a tough, highly resistant thermoplastic polyurethane extruded through the weave, forming a single homogenous construction without the use of glues or adhesives. It includes 4 electrical wires protected with a braided sheet of polyester to help prevent static build up. The construction of the hose does not permit corrosion or scaling, while giving a high resistance against abrasion and cutting. Easy handling, storage & transport, which allows for fast installation and retrieval. 2% maxi- mum hose elongation and 10% maximum hose expansion. Lining Properties: a. Ultimate Tensile Strength of the lining: Minimum guaranteed value of 5,800 psi (40 MPa). b. Ultimate Elongation: 500% minimum. : The OROFLEX OIL hose will extend the lifetime of your application when under extreme conditions, where abrasion is the main concern. Under practical conditions, thermoplastic polyurethane is considered to be the most abrasion resistant elastomeric material. Ozone Resistance: No visible signs of cracking will appear due to the ozone. Excellent weather and UV resistance. Exposure to seawater and contamination by most chemical substances, hydrocarbons, oils and greases has no effect on the short or long term performance of the hose.
