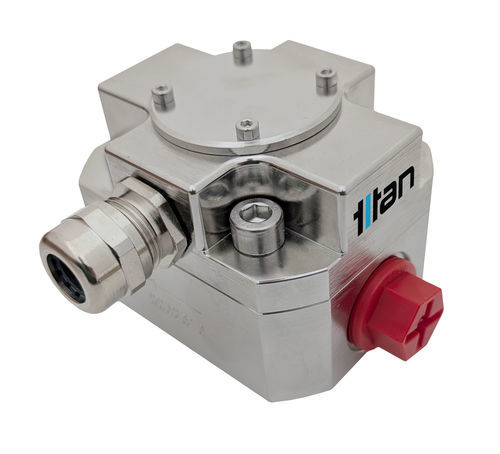

Oval gear flow meter OG3
positive displacementfor liquidsDN15 - 1/2"

oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
Add to favorites
Compare this product


Characteristics

Technology
oval gear
Type
positive displacement
Fluid
for liquids
Pipe diameter
DN15 - 1/2"
Installation
in-line
Material
stainless steel, aluminum
Communication
with pulse output, digital output
Supply voltage
24 Vdc
Protection level
rugged, IP67
Applications
industrial, for water treatment, for the petrochemical industry, for the beverage industry, for the oil and gas industry, high-pressure
Other characteristics
digital, compact, reed switch
Volumetric flow rate

Max.: 10 l/min
(2.6417 us gal/min)

Min.: 0.1 l/min
(0.0264 us gal/min)

Process temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Process pressure

Max.: 700 bar
(10,152.64 psi)

Min.: 0 bar
(0 psi)

Precision

0.5 %

Repeatibility

0.1 %

Description

The compact rugged OG3 oval gear positive displacement flowmeter is designed to give high performance with a low cost of ownership. It has a standard flow range from 0.05 to 10 L/Min on 30 cSt oil and 0.5 to 10 L/min on water like liquids. It can have totally non-metallic wetted components, PEEK™, ceramic and an elastomer which makes this the ideal choice for the metering of aggressive chemicals. The standard inlet and outlet are ½' female threads. For OEM use alternatives, including manifold mountings, are available. The standard model is 316 St St with Viton® 'O' ring seal. At the heart of the OG3 oval gear positive displacement flow meter are a pair of toothed oval gears one of which contains chemically resistant magnets. Rotation is detected through the chamber wall by a Hall effect detector or a reed switch giving approximately 440 pulses per litre passed. The output is an NPN pulse or a voltage free contact closure either of which is readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable, accurate operation throughout. Oval gear positive displacement flow meter/sensor Excellent chemical resistance Rugged construction Individual calibration High viscosity capability Low pressure loss No flow conditioning required Compact meter assembly Hall, reed switch or Namur sensor Accuracy ±0.5% FSD water ±0.50% reading oil (30 cSt) ±0.50% reading * 0.1% repeatability IP67/NEMA 4 protection Models to 700 Bar Non-metallic option * When used with our metra-smart The OG3 (Oval Gear) Positive Displacement Flow Meter is Ideal for: Engine test Critical oil flow High viscosity fluids
