Oval gear flow meter Metra-Clear
volumefor liquidsDN15 - 1/2"

oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
oval gear flow meter
Add to favorites
Compare this product


Characteristics

Technology
oval gear
Type
volume
Fluid
for liquids
Pipe diameter
DN15 - 1/2", DN25 - 1", DN20 - 3/4", DN8 - 1/4"
Installation
in-line
Material
stainless steel, aluminum
Communication
with pulse output, digital output
Protection level
rugged, IP67
Applications
industrial, for water treatment, for the petrochemical industry, for the oil and gas industry
Other characteristics
digital, compact, electronic, high-pressure, reed switch
Volumetric flow rate

Max.: 100 l/min
(26.4172 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Process temperature

60 °C
(140 °F)

Process pressure

10 bar
(145.04 psi)

Precision

0.5 %, 0.75 %, 1 %

Repeatibility

0.1 %

Description

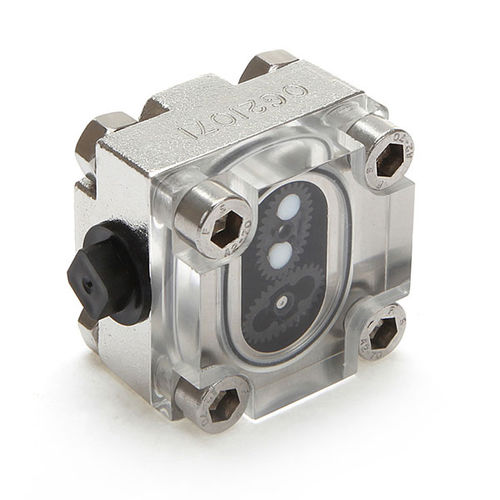

The compact rugged acrylic topped Metra-Clear oval gear flowmeter is designed to give high performance with a low cost of ownership. The meters cover flow ranges from 0.01 to 100L/min on 30cSk oil and 0.1 to 100L/min on water like liquids. For OEM use alternatives, including manifold mountings, are available. The standard models have 316 St St aluminium or PEEK bodies with Viton® ‘O’ ring seals. For general meter specification see the appropriate OG data sheet. At the heart of the Metra-Clear oval gear flow meter are a pair of highly visible toothed oval gears one of which contains chemically resistant magnets. Rotation is detected through the chamber wall by a Hall Effect detector or a reed switch giving an accurate number of pulses per litre passed. The output is an NPN pulse or a voltage free contact closure either of which is readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable, accurate operation throughout. Rugged construction High visibility Individual calibration High viscosity capability Low pressure loss No flow conditioning required Compact meter assembly Hall or reed switch sensor Accuracy ±0.5% reading * 0.1% repeatability IP67/NEMA 4 protection Non-metallic option 10 Bar pressure 60°C maximum temperature 5 flow ranges * When used with our metra-smart instrument The Metra Clear Oval Gear PD Flow Meter is Ideal For: Engine test Critical oil flow High viscosity fluids OEM equipment Metra-Clear Oval Gear PD Flow Meter – Standard Materials of Construction Body and cap – 316 St St PEEK ‘O’ Ring – Viton® Gears – PEEK Magnets – Ceramic
