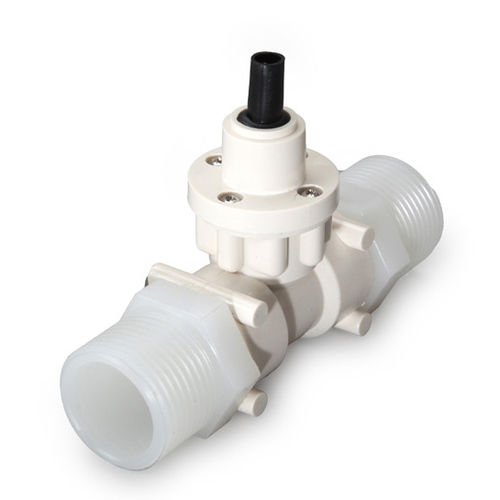

Turbine flow meter FT2
volumefor chemicalsin-line

turbine flow meter
turbine flow meter
turbine flow meter
turbine flow meter
turbine flow meter
turbine flow meter
turbine flow meter
Add to favorites
Compare this product


Characteristics

Technology
turbine
Type
volume
Fluid
for chemicals
Installation
in-line
Communication
with pulse output
Supply voltage
24 Vdc, 5 VDC
Protection level
rugged, chemical-resistant, IP65
Applications
laboratory
Other characteristics
compact, precision, electronic, bi-directional, economical, custom
Volumetric flow rate

Max.: 160 l/min
(42.2675 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Process pressure

15 bar
(217.56 psi)

Repeatibility

0.1 %

Description

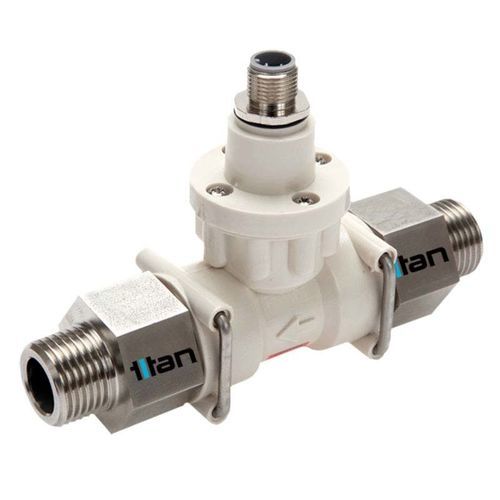

FT2 Turbine Flow Meter: Optical Detection The multi-range, optical FT2 radial flow turbine meter uses a low inertia turbine supported on robust sapphire bearings in a chemically resistant housing. 9 flow ranges (0.02 to 160 L/min), a choice of 'plug in' fittings and individual traceable calibration make this turbine flow meter one of the most flexible flow sensors available. For OEM flow measurement applications the fittings can be tailored to suit the installation and speed production. Custom leads or connectors are also available for quantity orders. At the heart of the FT2 optical turbine flow meter is a precision turbine that rotates freely on robust sapphire bearings. This rotation is sensed using optical detection. The resulting output is an NPN pulse that is readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable operation throughout. Because the optical turbine flowmeter is so versatile with respect to flow range and fittings every combination of range and fitting is not available. The chart below shows the maximum standard flow rate/fitting we would recommend to attain our performance figures. Alternatives are possible but there would be degradation in the meters performance. Economical PPS body ± 0.75% reading * 1-1.5% FSD Sapphire bearings Optical sensing 9 Flow ranges Pulse output 15 Bar rating Viton® seal as standard IP65 Choice of fittings 0.1% Repeatability 5 or 7.5 to 24 V dc -10 to +80°C Max * When used with our Metra-smart instrument The FT2 Optical Turbine Flow Meter is Ideal for: Drinks dispensing Laboratory tests Cooling equipment Semiconductor plant
