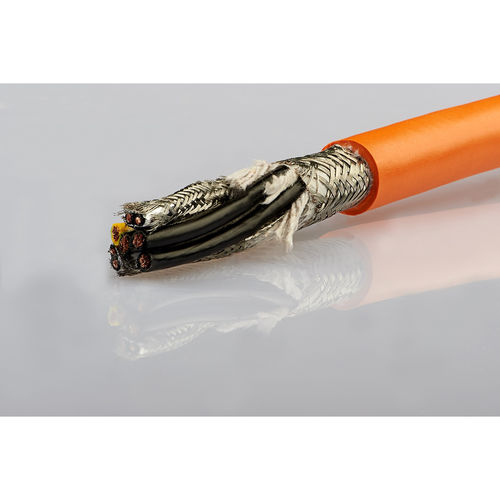

Power cable KAWEFLEX

modularfor servo motorsfor servo-variators

Servo-drives, measure. & system cables Servo-drives, measurement & system cables for the electric drive technology variants for fixed installation as well as high flexible cables for use in permanent (highly) dynamic applications like drag chain or robotic. The KAWEFLEX® Servo 2X… EMC double screened versions for fixed installation and casually movement as Power, control and connecting cable for drive systems with frequency converter technology - The XLPE core insulation offer the same reliability as the standard PE version but thanks to the choice of insulation system it could operate at a higher core temperature (2X: 90°C max conductor temp. vs 2Y: 70°C for standard PE versions). Starting with a cross section of 10mm² they are available in optimized design where the earth conductor is located in the interstices of the conductor assembly resulting in much lower diameter and reduced weight.
