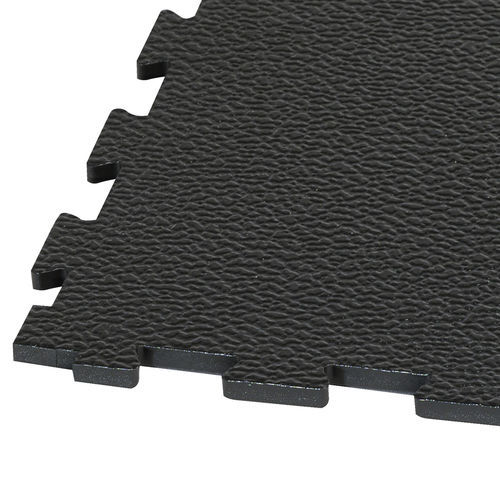

Protection tile Traficfloor AS/ESD

anti-staticPVCconstruction

necessary to protect the users, to safely handle components sensibles to static electricity they suppress risks linked with static electricity : dust fixation, physiological issues, electronic components deterioration, explosion risks… ergonomics and anti-slip for users comfort and safety they offer a flexible floor avoiding to break fragile components easy to install, fast to interlock and dislock thanks to its exclusive interlocking system : no disruption to daily activities, ideal for workstations transfer for a conducting floor marked by a specific logo, to immediately and simply identify the protected zone Characteristics Finish : Textured Surface appearance : satin Dimensions : 50 x 50 cm – 4 tiles / sqm Thickness : 7 mm (also available in 5 mm thickness - Contact us) Weight 7 mm : 2.37 kg / tile (9.49 kg/sqm) R10 surface finish - VOC Emissions * : A+ Traficfloor AS : Transverse resistance : 1,6 . 109 Ω Color : available in Grey Blue Ral 7031 Traficfloor ESD : Transverse resistance : Rx (Ώ) < 104 Ω Require the installation of a copper tape connected to earth. Measurement is performed on five points spaced from 25 cm, first at 10 V if the result is < 104 Ω in fine at 100V, otherwise, as indicate the standard. Then we keep the geometric mean of the obtained values. Colors : available in Black Ral 9017 and Grey Ral 7046
