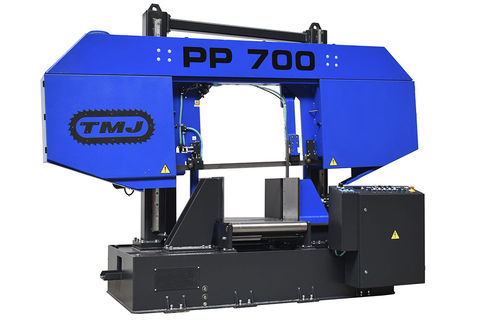

Band saw PP 700

verticalfor metalssemi-automatic

Semi-automatic electrohydraulic double column band saw machine for metal dedicated for straight cuts. Two columns, stand and crossbar create a closed frame, which ensures perfect rigidity and therefore accurate and fine cut while using maximal technological conditions. saw blade [mm] 8200 × 54 × 1,6 motor [kW] 7,5 cutting speed [m/min 15–110 weight [kg] 5250 dimensions [mm] 3840 × 1710 × 2760 HYDRAULIC BUNDLE CLAMPING It enables clamping of material while cutting of bundle. It ensures reliable clamping by means of hydraulically controlled vertical vice working in a cycle with the whole machine. MICRO SPRAY COOLANT SYSTEM It creates oil mist, which is injected into area of cut. It does replace common cooling fluid especially in case of sectional material cutting, where cooling fluid may leak out of the machine. CHIP RAKE CONVEYOR It takes chips out of the machine into a placed container. LASER LINE MARKER Beam of laser marks an area, where the cut is to be conducted. MACHINE LAMP It illuminates a working area of the machine.
