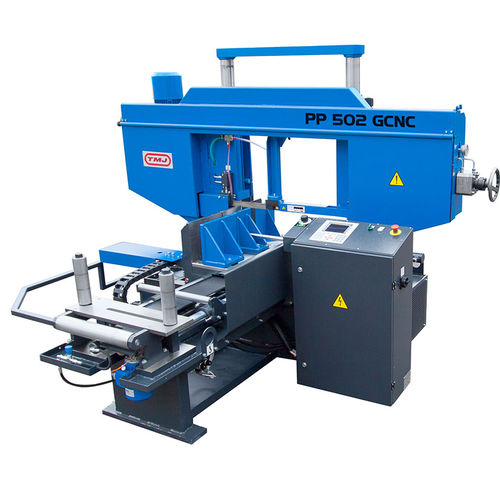

Band saw PP 502 G
miterverticalfor metals

Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals
Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals
Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals - image - 2
Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals - image - 3
Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals - image - 4
Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals - image - 5
Band saw - PP 502 G - TM Jesenice servis - miter / vertical / for metals - image - 6
Add to favorites
Compare this product


Characteristics

Technology
band, miter
Orientation
vertical
Treated material
for metals
Operational mode
fully-automatic, CNC
Other characteristics
frame, electro-hydraulic
Round piece diameter

250 mm, 370 mm, 500 mm
(10 in, 15 in, 20 in)

Description

Fully automatic electrohydraulic band saw machine for metal dedicated for straight cuts with a possibility of mitre cutting from 90° to 60° right in automatic mode. Two columns, stand and crossbar create a closed frame, which ensures perfect rigidity and therefore accurate and fine cut while using maximal technological conditions. Band saw is controlled by means of microprocessor control system with screen and keyboard to program the functions of band saw. Machine stops in case of number of pieces set is achieved, missing material, saw blade getting broken or failure (with its identification). Band saw is equipped with electrohydraulic feeding of material up to length of 500 mm (arbitrarily repeatable) with continuously adjustable mechanic back stop of accuracy of ± 0,1 mm. saw blade [mm] 5620 × 41 × 1,3 motor [kW] 4 cutting speed [m/min 12–100 weight [kg] 2200 dimensions [mm] 2800 × 2320 × 2300 HYDRAULIC BUNDLE CLAMPING It enables clamping of material while cutting of bundle. It ensures reliable clamping by means of hydraulically controlled vertical vice working in a cycle with the whole machine. VARIABLE VICE PRESSURE It enables to regulate power of clamping while cutting of thin wall profiles. It helps to avoid deformation of material being cut and secures an accurate cut. MICRO SPRAY COOLANT SYSTEM It creates oil mist, which is injected into area of cut. It does replace common cooling fluid especially in case of sectional material cutting, where cooling fluid may leak out of the machine. CHIP RAKE CONVEYOR It takes chips out of the machine into a placed container.
