Roller conveyor RBM 1000

horizontalelectric drivesturdy

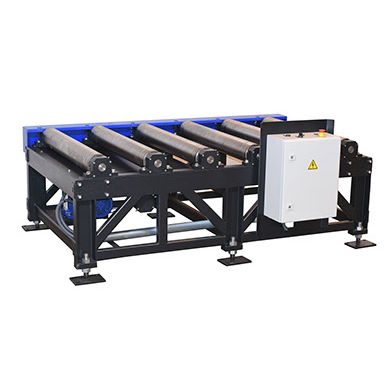

Powered roller conveyors with sturdy and rigid design. Single sections can be joined together in roller track suitable for material feed in and feed out. Conveyors legs are adjustable to fit the working height. width [mm] 1010 working height [mm] 700 length [mm] 2000 roller diameter [mm] 128 number of rollers 6 loading capacity per 1 m [kg] 12600 motor [kW] 1,5 feeding speed [m/min] 0,8–6 ADMEASURING SYSTEM L2 - automatic back stop with read-out enables to set desired length of material being cut with an accuracy of ± 0,2 mm. SIDE GUIDING ROLLERS Vertical guiding rollers enable based on the respective variant an easy arrangement of pipes and sectional material for cutting into a bundle or safe guiding of solid material into saw.
