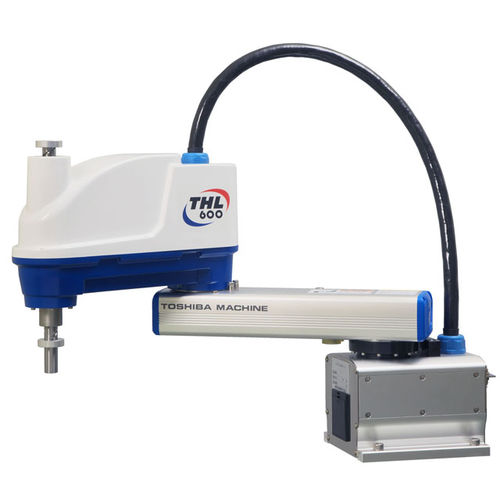

SCARA robot THL600

4-axisfor assemblypackaging

THL series SCARA Robots include the THL500, THL600 and THL700 with arm lengths of 500mm, 600mm and 700mm respectively. Each THL offers a payload of 10kg. Cycle times (with 2 kg load) are .45s for the THL500 and THL600, and .50s for the THL700. All THL Robots feature a working envelope of 4 axes, with a Z-axis rotation of 360º. Features and benefits - Low Cost - Light to Medium Duty - Ideal for loading and unloading applications - Ideal for end of line packaging and assembly work *1: Acceleration/deceleration rates may be limited according to the motion pattern, load mass and amount of offset. *2: When the environment temperature is constant 20℃. Positioning repeatable accuracy in one-direction movement.Not absolute positioning accuracy. *3: Horizontal 300mm, vertical 25mm, round-trip. Continuous operation is not possible beyond the effective load ratio. *4： Pneumatic joints are provided on the base. Please refer to the drawings for the details of the pneumatic joints. Pipes to be provided by the customers.
