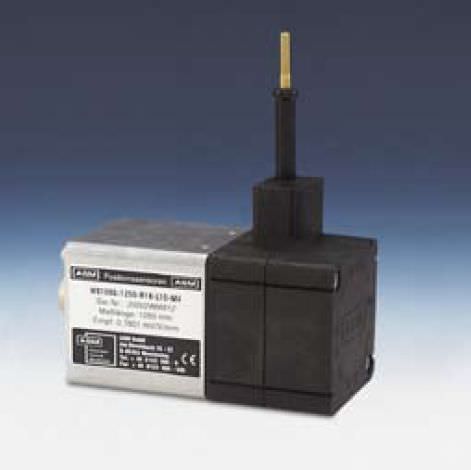

Draw-wire position sensor max. 1.25 m | WS10SG capacitiveanalog
Add to favorites
Compare this product
Characteristics
- Type
- draw-wire
- Technology
- capacitive
- Output signal
- analog
Description
Excitation voltage V 18...27VDC for output serie 0...10VDC 12...27VDC for output serie 4...20mA
Consumption mA 20mA for output serie 0...10VDC 35mA for output serie 4....20mA
g See Specifications in attachment
Linearity deviation %EM +/-0,1% of measuring range
Capacity mm 0 to 100, 125, 375, 500, 750, 1000, 1250 mm
Mass g 350
Material Aluminium & stainless steel, stainless steel wire
Resolution
Output signal Vdc 0...10VDC (option 10V) 4...20mA (option 420A)
Operating temperature °C -20 to 85
