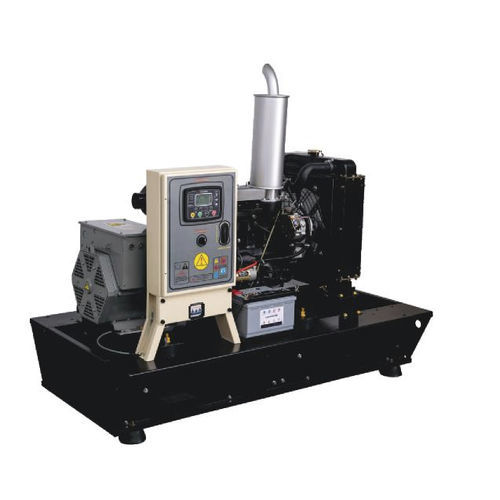

Diesel generator set TMGYD-15three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- liquid-cooled
- Options and accessories
- soundproof, open type
- Power in kVA
Max.: 15 kVA
(20.39 hp)Min.: 13.6 kVA
(18.49 hp)- Rated capacity
Max.: 12 kW
(16.3 hp)Min.: 10.9 kW
(14.8 hp)- Voltage
230 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
1,700 mm, 2,000 mm
(67 in, 79 in)- Width
950 mm
(37 in)- Height
1,100 mm, 1,260 mm
(43 in, 50 in)- Weight
456 kg, 650 kg
(1,005.31 lb, 1,433 lb)
Description
Continuous Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a constant electrical load.
Average load can be 100%. The generator must not be overloaded.
Standby Power
The maxpower available during a variable electrical power sequence, under the stated operating conditions, for which a generatingset is capable of delivering in the event of a utilitypower outage or under test conditions for up to 200 hrs of operation per year under average of 70%load.Overloading isn’t permissible.
Prime Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a variable electrical load.Average load should be 70%. The generator can be overloaded 10% for 1 hour per 12 hrs.
