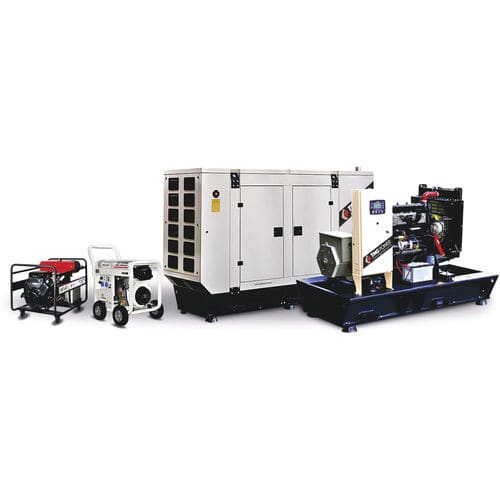

Diesel generator set TMGL-250three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- liquid-cooled
- Options and accessories
- soundproofed, open type
- Power in kVA
Min.: 227.2 kVA
(308.91 hp)Max.: 250 kVA
(339.91 hp)- Rated capacity
Min.: 181.8 kW
(247.2 hp)Max.: 200 kW
(271.9 hp)- Voltage
230 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
3,000 mm, 3,500 mm
(118 in, 138 in)- Width
1,200 mm
(47 in)- Height
1,950 mm
(77 in)
Description
Continuous Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a constant electrical load.Average load can be 100%. The generator must not be overloaded.
Standby Power
The maxpower available during a variable electrical power sequence, under the stated operating conditions, for which a generatingset is capable of delivering in the event of a utilitypower outage or under test conditions for up to 200 hrs of operation per year under average of 70%load.Overloading isn’t permissible
Prime Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a variable electrical load.Average load should be 70%. The generator can be overloaded 10% for 1 hour per 12 hrs.
