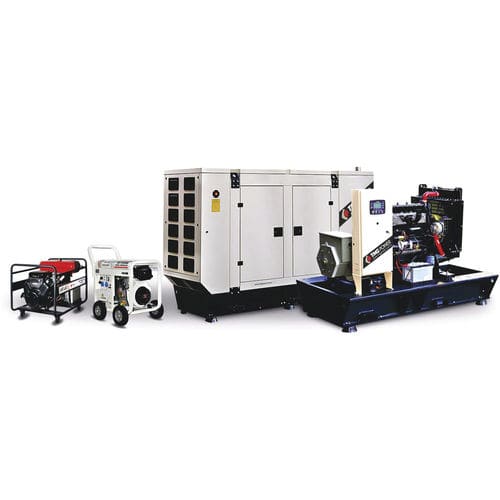

Diesel generator set TMGL-440three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- liquid-cooled
- Options and accessories
- soundproof, open type
- Power in kVA
Min.: 400 kVA
(543.85 hp)Max.: 440 kVA
(598.23 hp)- Rated capacity
Min.: 320 kW
(435.1 hp)Max.: 352 kW
(478.6 hp)- Voltage
230 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
3,000 mm, 3,680 mm
(118 in, 145 in)- Width
1,200 mm
(47 in)- Height
2,000 mm
(79 in)
Description
Continuous Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a constant electrical load.Average load can be 100%. The generator must not be overloaded.
Standby Power
The maxpower available during a variable electrical power sequence, under the stated operating conditions, for which a generatingset is capable of delivering in the event of a utilitypower outage or under test conditions for up to 200 hrs of operation per year under average of 70%load.Overloading isn’t permissible
Prime Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a variable electrical load.Average load should be 70%. The generator can be overloaded 10% for 1 hour per 12 hrs.
