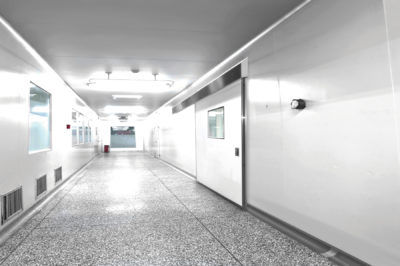

These door systems are designed for use in pharmaceutical facilities, factories, processing plants, and other areas where a clean environment must be maintained and harsh chemicals exist. The 67000F is suitable for applications with regular cleaning using harsh chemicals and cleaning solvents.
FEATURES
CONSTRUCTION
Door Panel – The 67000F is constructed using a 16 gauge internal framework with a honeycomb core and .09" thick, gel-coated FRP laminated panel that provides a smooth, cleanable finish. Standard colors are white, beige gray and brown, additional colors are available please contact the factory.
Core – The standard core is Kraft honeycomb with optional urethane insulation available.
Capping Channels – All edges are protected by 20 gauge, 304 #4 stainless steel capping channels, creating an attractive appearance and durable design.
Weatherstrip – Full perimeter, long-lasting wear resistant gray fiberglass reinforced silicone weatherstrip creates a tight seal for insulation and noise control.
Optional Vision Panels – Attractive surface mounted sloped stainless steel window casings are available.
Pull Handles – Plastic flush pulls are standard on both sides of the door. Stainless steel flush pulls are available as an option.
Panel Hardware – Adjustable panel hardware for in-field adjustments assist in maintaining a positive and tight seal. Optional no hardware mounted into the floor.
Trackhood – A closed end sloped stainless steel trackhood allows for easy cleaning and resists particle buildup.
TEP Track System – The TEP track system combined with permanently lubricated trolleys provide virtually "silent" operation with minimal resistance.
