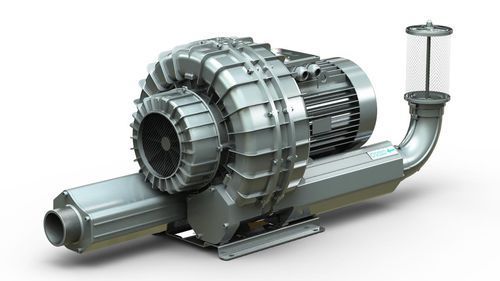

Air blower EJ KBZ series
side-channeldual-stagedirect-drive

air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
side-channel
Number of stages
dual-stage
Other characteristics
direct-drive
Flow

Max.: 1,550 m³/h
(54,737.733 ft³/h)

Min.: 160 m³/h
(5,650.347 ft³/h)

Operating pressure

Max.: 1,700 mbar
(24.656 psi)

Min.: 20 mbar
(0.29 psi)

Nominal power

Max.: 22 kW
(29.912 hp)

Min.: 1.5 kW
(2.039 hp)

Description

Side Channel Blower - Double Stage Direct coupled engine Aliminum injection cast housing and fan Capacity: 160 - 1550 m3/h Operating Temperature -15 to +40°C Monophase option for 0.25 – 3 kW range Pressure applications: +500 mbar continues max working pressure +750 mbar instant max pressure Vacuum applications: -350 mbar continues max working pressure -600 mbar instant max pressure
