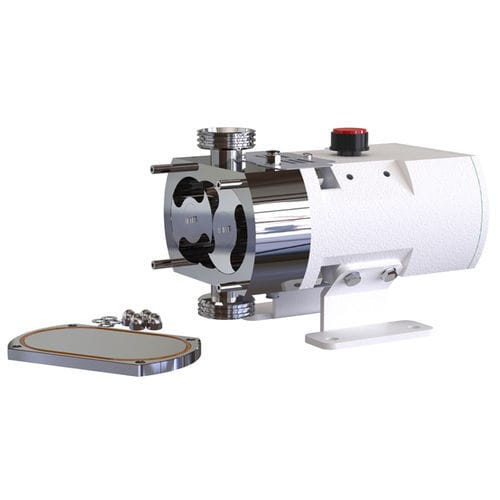

Rotary lobe pump SLA series
beverageelectricstationary

Rotary lobe pump - SLA series - TMX FLOW - beverage / electric / stationary
Rotary lobe pump - SLA series - TMX FLOW - beverage / electric / stationary
Rotary lobe pump - SLA series - TMX FLOW - beverage / electric / stationary - image - 2
Rotary lobe pump - SLA series - TMX FLOW - beverage / electric / stationary - image - 3
Rotary lobe pump - SLA series - TMX FLOW - beverage / electric / stationary - image - 4
Add to favorites
Compare this product


Characteristics

Technology
rotary lobe
Fluid
beverage
Operation
electric
Mobility
stationary, mobile
Domain
industrial, chemical, for the food industry, for the pharmaceutical industry, sanitary, for the cosmetics industry
Applications
handling, replacement
Material
stainless steel
Other characteristics
mechanical, seal
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 122 m³/h
(4,308.38934 ft³/h)

Pressure

12 bar
(174.045 psi)

Fluid temperature

Min.: -10 °C
(14 °F)

Max.: 140 °C
(284 °F)

Description

SLA range has been developed for general applications within the Dairy, Beverage, Food, Home, Chemical and Personal Care industries. Application SLA range of rotary lobe pumps combines cost effective simplicity and easy maintenance with TMX quality and reliability. SLA range has been developed for general applications within the Dairy, Beverage, Food, home, chemical and personal care industries. Fully with CIP cleanable. This pump is also perfect for handling any liquid with low or high viscosity. When it comes to filtration and bottling applications. Products containing brittle solids such as curd. Thanks to specially designed lobes, it can be pumped without damage. Easy inspection or replacement without the need for pipework disassembly. SLA pump is a bare shaft rotary lobe pump. It is made of a stainless steel. Pump casing and cover, and two-lobe rotors with sanitary attachment. SLA rotary lobe pump is provided with an internal mechanical seal approved EHEDG. The seal is balanced and has a hygienic design. When required, other materials can be used.
