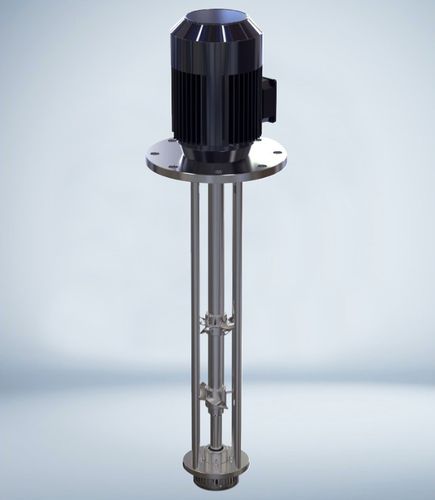

Rotor mixer SDD series

batchfor liquidsvertical

Vertical mixer series high shear vertical mixers offer a solution for the dispersion, emulsification, homogenization and degradation processes of solids in a wide variety of products in the food processing, cosmetic, pharmaceutical and fine chemical industries. These mixers are intended for work under the atmospheric pressure and with the products of either high or low viscosity. The mixers are recommended to work with anchor type agitators if the application involves highly viscous media. Operation The high speed and adjusted tolerances between the rotor and the stator result in high suction potential, the product is suctioned from the bottom of the tank and driven to the centre of the head. Passing through the openings of the stator the product is mechanically sheared. The particles are sheared by the rotor at 20 m/s and finally the product is hydraulically sheared while leaving the stator through the slots at a high speed . The combination of the vertical suction and radial thrust results in a circulation flow. User Benefits Fast and homogenous powder dissolving Fast, effective liquid mixing performance in tanks Efficient gas and powder dispersion High dynamic shear, gentle mixing Reduced installation, emissions, energy and maintenance costs Reduced investment cost due to the reduction to basic functions The design is suitable for many applications, from corrosive chemicals to the highest hygiene standards and requirements.
