Wheeled loader G2200

articulatedstandard

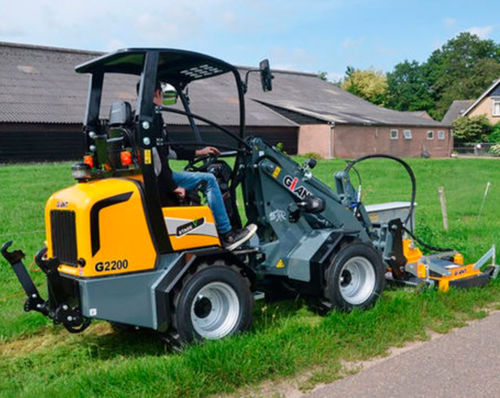

The new G2200 articulated loader is a lightweight machine with a reliable 26 hp, Kubota engine (Stage V). The hydrostatic 4-wheel drive with automotive steering and 6-tonne axles ensure a pulling force of 12,600 N! The wide range of attachments ensures that this wheel loader can be used for a wide variety of applications. The cabin and safety roofs are internationally ROPS / FOPS certified and ensure that you can work safely. Thanks to a large number of options, it is possible to assemble the machine completely according to your wishes. Hitch: GIANT Standard (Hydraulically) ROPS / FOPS safety roof, incl. safety doors left and right Double acting hydraulic valve at the front (mechanical) Hydraulic servicebreak on 4 wheels Floating position on lifting cylinder(s) Luxury seat with safety belt, armrest and extended backrest Main switch Towing hook at the back Working light on lifting arm Cyclone filter Oil cooler Engine - Kubota D1105 (3 cylinder), Stage V Engine power - 26 HP / 19 kW Fuel - Diesel Service weight1 - 2,100 kg Lifting capacity - 1,650 kg Tipping load2 - 1,450 kg Lifting height2 - 2,825 mm Length without bucket - 2,975 mm Width on standard tires - 1,080 mm Driving mechanism - Hydrostatic 4 wheel drive with automotive control with 6 tons axles with pulling force of 12,600 N
