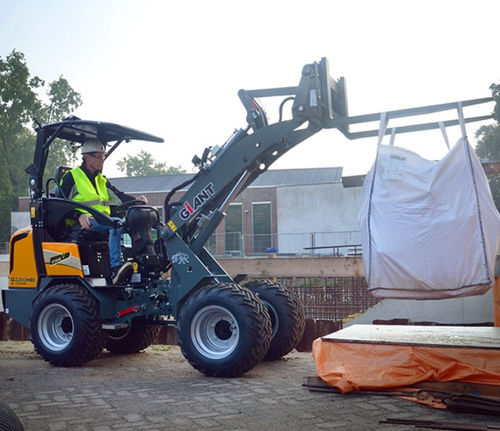

Wheeled loader G2200 X-TRA HD

articulatedcompact

Need a articulated loader for heavy work? The G2200 X-TRA HD is a compact and versatile wheel loader developed for heavy work. The abbreviation HD stands for Heavy Duty and that means that the machine has more pulling power than the G2200 X-TRA. By using a hydrostatic 4 wheel drive with automotive steering and 6 tonne axles, the HD delivers 14,300 N in pulling power. In combination with a reliable, 26 horsepower, Kubota (Stage V) engine, the machine is productive, agile and powerful. The X-TRA model has a lower front frame, which means that the tipping load of the GIANT articulated loader is considerably higher than that of the G2200 HD. This makes the wheel loader suitable for work within construction and earthmoving. Hitch: GIANT Standard (Hydraulically) ROPS / FOPS safety roof, incl. safety doors left and right Double acting hydraulic valve at the front (mechanical) Hydraulic servicebreak on 4 wheels Floating position on lifting cylinder(s) Luxury seat with safety belt, armrest and extended backrest Main switch Towing hook at the back Working light on lifting arm Cyclone filter Oil cooler Engine - Kubota D1105 (3 cylinder), Stage V Engine power - 26 HP / 19 kW Fuel - Diesel Service weight1 - 2,200 kg Lifting capacity - 2,200 kg
