Wheeled loader D204SW

articulatedtelescopiccompact

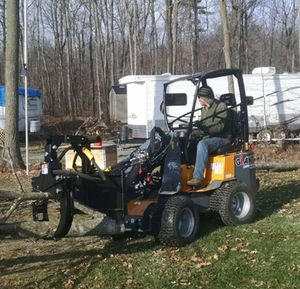

The GIANT D204SW TELE is known as the most compact telescopic wheel loader in the product series range of GIANT. This highly manoeuvrable machine is in combination with its telescopic arm and lots of hydraulic possibilities a must-have for gardeners and farmers. Hitch: GIANT Compact (Mechanically) ROPS / FOPS safety roof Double acting hydraulic valve on lifting arm (mechanical) Floating position on lifting cylinder(s) Luxury seat with safety belt, armrest and extended backrest Main switch Oil cooler Lifting eyes Engine - Kubota D722 (3 cylinder), Engine power - 20 hp / 15 kW Fuel - Diesel Service weight1 - 1,100 kg Lifting capacity - 750 kg (with retracted lifting arm) Tipping load2 - 900 kg (with retracted lifting arm) Lifting height2 - 2,820 mm Length without bucket - 2,240 mm Width on standard tires - 920 mm Driving mechanism - Hydrostatic 4 wheel drive with automotive control by 4 heavy Poclain wheel engines Control - Drive back- and forward through electrical switch Differential lock - Electric controlled slip differential Driving hydraulics - 65 ltr/min (300 bar) Working hydraulics - 28 ltr/min (180 bar) Driving speed - 0-14 km/h
