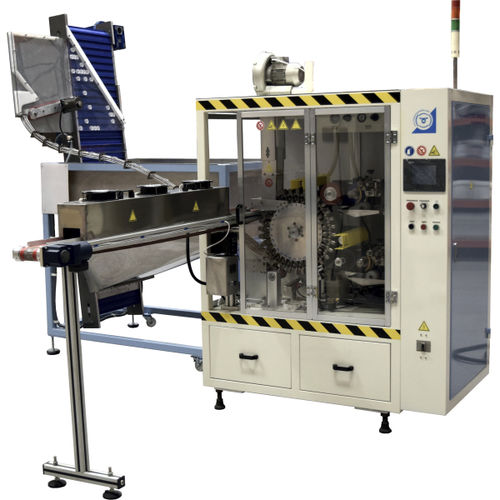

Pad printing machine with open ink cup ROTAX

automaticmonochrome2-color

Up to 6 colours | Width 200 mm | 4 Lines Rotary tampon printing machine for caps and/or similar products. Combines automatic loading, cap blocking, flaming, printing, drying and automatic unloading in one machine. Its ease of start-up, production speed and stability make it an economical solution for large capping productions. Features: 1 or 2 colours Automatic loading system with sorter and mechanical insertion of caps. Flamer with electronic ignition Antistatic cleaning system Automatic drying system after printing Cap cleaner Automatic ink pumping system Automatic ink discharge Technical Data: Cycle: - Single, multiple and continuous Part counter: - Yes, sequential and count down Speed adjustment: - Yes Speed: - 20K to 80K p/h according to product and configuration Maximum pad height: - 100 mm Pressing force: - 750 N Drive: - Motor Control: - PLC and 5" Colour Touch Screen Control Voltage: - 24V DC Power supply: - 230V / 1 Phase / N / Earth - 50/60 Hz Power Consumption: - 12A Compressed Air: - Dry and Filtered 5-6 bar Air Consumption: - 75 l/min Gas: - Propane 2 bar Dimensions: - L2500xW2000xH - L2500xW2000xH2300mm Weight: - 950 kg Quality: Designed for industry according to European standards. Parts machined in our machining centres Laser cut and CNC folded structure Original electronics and pneumatics from leading brands Safety: Emergency stop Soft start valve Double pneumatic safety valve with limit switch sensor Safety sensors for doors with coded magnets Safety relay
