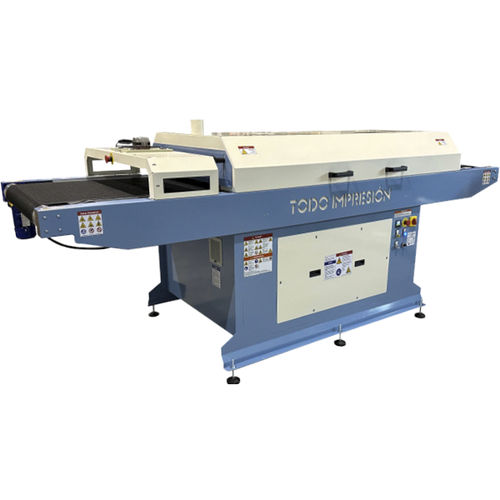

Tunnel oven HEFESTO
dryinginfraredair circulating

Tunnel oven - HEFESTO - TODO IMPRESIÓN SYSTEMS, SL - drying / infrared / air circulating

Add to favorites

Compare this product

Go to the TODO IMPRESIÓN SYSTEMS, SL website for more information

Characteristics

Configuration: tunnel
Function: drying
Heat source: infrared
Atmosphere: air circulating
Other characteristics: digital, continuous, industrial
Maximum temperature: Max.: 250 °C
(482 °F)
Width: Max.: 80 cm
(31.5 in)
Height: Max.: 10 cm
(3.94 in)
Depth: 200 cm
(78.74 in)

Description

IR Tunnel Conventional IR Tunnel available in a wide range of sizes and powers perfect to complement any conventional ink printing process to accelerate drying or high temperature curing. Features: Web width from 600 mm x Length from 2500 mm (see available sizes). Mouth height adjustable from 0 to 150 mm (other sizes on request). Teflon + Fibreglass belt (other belts on request). Belt speed adjustable from 0 to 7 m/min (other speeds on request). Dedicated temperature regulator 1000mm heating chamber with ceramic resistances (other dimensions on request) Final Cooling System Air Recirculation System Exhaust Gas Exhaust Pipe Quality: Designed for industry according to European standards. Parts machined in our machining centres Laser-cut and CNC bent structure Original electronics and pneumatics from leading brands Safety: Emergency stop Safety Relay
