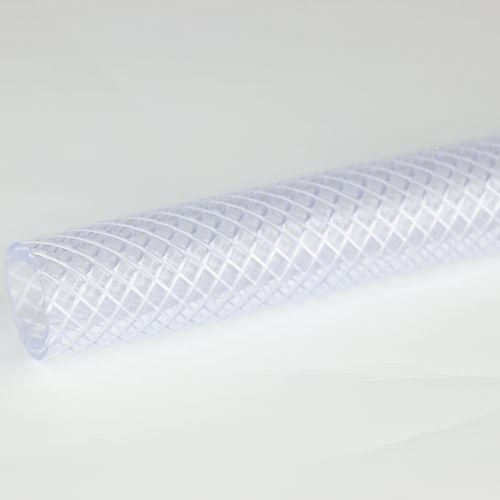

Reinforced hose BV serieshydraulicPVCpolyester
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- PVC, polyester, vinyl
- Other characteristics
- flexible, translucent, reinforced, braided
- Inner diameter
Max.: 51 mm
(2.008 in)Min.: 6 mm
(0.236 in)- Outer diameter
Max.: 62 mm
(2.441 in)Min.: 11 mm
(0.433 in)- Pressure
Max.: 17.2 bar
(249.465 psi)Min.: 4.8 bar
(69.618 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
REINFORCED VINYL HOSE
See-through, flexible, glass smooth inner surface and reinforced with polyester, making Toford reinforced vinyl hose suitable for wide variety of industrial, commercial or home applications. Ideal for pressurized fluid and gas transfer and for pneumatic tools and air lines. The PVC compound used is in compliance with FDA CFR Title 21 requirements and the tubings are NSF372 listed certified lead-free.
Make: PVC & Polyester Reinforced Braiding
Color: Clear or translucent or colored
Hardness: Shore A 83±3
Toxicity: NSF372 Certified Lead-free, FDA CFR Title 21 Compliant
Temperature Range: -20°C ~ 60°C / -4°F ~ 140°F
Packaging Options: Bulk Spool, Pre-Cut, Dispenser
