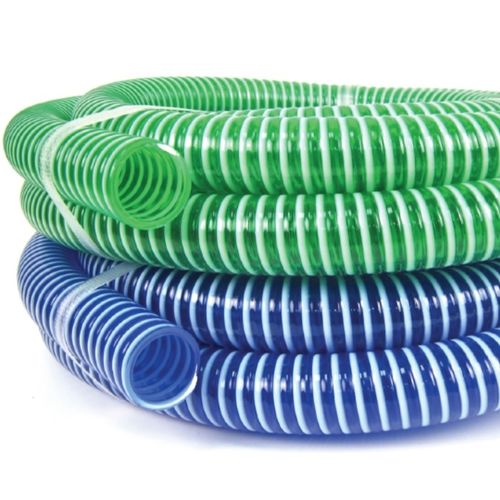

Suction hose TF0
hydraulicPVCtransfer

suction hose
suction hose
suction hose
suction hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
PVC
Applications
suction, transfer, heavy-duty, low-temperature, light-duty
Other characteristics
flexible, translucent, reinforced, multi-color
Inner diameter

Max.: 101 mm
(3.976 in)

Min.: 19 mm
(0.748 in)

Outer diameter

Max.: 111 mm
(4.37 in)

Min.: 23.8 mm
(0.937 in)

Pressure

Max.: 27 bar
(391.602 psi)

Min.: 6 bar
(87.023 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

HELIX REINFORCED SUCTION AND SPA HOSE Designed for a wide array of suction and pressure applications from the light-duty pumping of fluids to the heavy duty small solid transfer. The non-toxic, good alkalis and acid resistance interior are suitable for transfer of potable water to mild chemicals. The smooth and abrasion resistant interior enable optimal transport of abrasive media at a high delivery rate while maintaining a long service life. The clear wall permits good visibility where visual inspection is required. For the application that does not permit contact with lights, opaque wall option is available. The low-temperature soft PVC enables the hose to remain flexible in subzero environments. Make: Flexible PVC reinforced with rigid PVC helix integrated in the wall; low temperature soft PVC Toxicity: FDA, NSF372 certified Temperature Range: -10°C ~ 60°C / -14°F ~ 140°F Standard Length: 10m, 15m, 23m / 25ft, 50ft, 75ft Color: translucent or colored tFLEX SUCTION - MEDIUM DUTY Designed for most standard suction and pressure applications. The smooth interior enables the efficient transfer of clear fluids, and low volume small solids. The non-toxic interior is suitable for the transfer of potable water.
