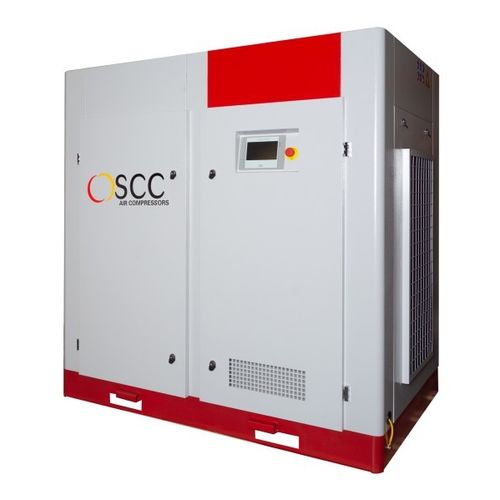

Screw compressor Strong 2S
airelectrically-poweredstationary

Screw compressor - Strong 2S - Tolpec GmbH (SCC Air Compressors) - air / electrically-powered / stationary
Screw compressor - Strong 2S - Tolpec GmbH (SCC Air Compressors) - air / electrically-powered / stationary
Screw compressor - Strong 2S - Tolpec GmbH (SCC Air Compressors) - air / electrically-powered / stationary - image - 2
Screw compressor - Strong 2S - Tolpec GmbH (SCC Air Compressors) - air / electrically-powered / stationary - image - 3
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-injected
Application domain
industrial
Other characteristics
low-noise, direct-drive, energy-saving, variable-speed, air-cooled, two-stage
Power

Min.: 7.5 kW
(10.2 hp)

Max.: 315 kW
(428.28 hp)

Description

By using a 2-stage compression process the air is compressed in 2 steps from ambient pressure to final pressure. Between these two compression stages the air is cooled down. This type of compression requires considerably less energy than single-stage compressors. Up to 10% more performance Due to the permanent magnet motors used, the effi- ciency of such a compressor is another 1 to 10 % better than that of a compressor with conventional motors (three-phase asynchronous motor). 2-stage compression The 2-stage compression is additional Energy saved. High energy efficiency Thanks to the special design of the permanent magnet motor, the compressor has an almost constant high energy efficiency over the entire control range of the machine, which means you save energy permanently, no matter how much compressed air the compressor supplies. Smart integration Do you need the compressor data live in a control room or on your smartphone / tablet? This is also no problem for our control system. Appropriate additional software makes it possible. Low noise level Our STRONG compressors are not only quiet, they always deliver exactly the amount of compressed air you need. Intelligent control Thanks to the super-intelligent controls, you are always in the picture regarding the condition of the compressor. Intuitive touch-screen user guid- ance makes it easy to operate the compressor.
